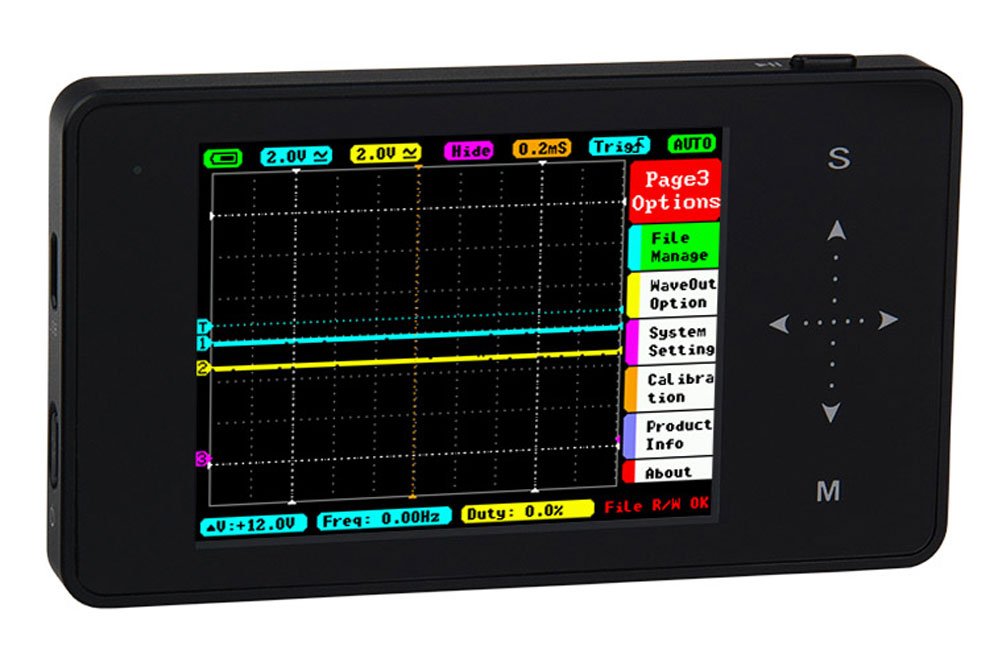

1Mhz Touch Screen Pocket Oscilloscope


1Mhz Touch Screen Pocket Oscilloscope

Key Features

  • 1Mhz Bandwidth Range
  • Touch Screen
  • 2 Channels
  • Small compact design
  • Signal Generator 10Hz ~ 1MHz square wave or 10Hz ~ 20KHz sine, square, triangle, sawtooth wave
  • Waveform Storage
Category: .

Product Description

The small compact pocket touch screen 1Mhz 2 channel oscilloscope is a practical instrument for basic electronics ranging from all fields such as education, laboratory testing to electrical engineering.

Range 1Mhz
Sampling Rate 10MSa/s
Sample Memory Depth 8K
Analog Input Impedance 1MO
Max Input Voltage ±40V
Vertical Sensitivity 20m v/Div ~ 10V/Div
Horizontal Sensitivity 1uS/Div ~ 2S/Div
Trigger Mode Auto, Normal, Single, None, Scan
Coupling Mode AC/DC
Waveform Functions Auto Measurement Frequency, cycle time, duty cycle, peak voltage, RMS voltage, average voltage and DC voltage
Waveform Storage 8MB
Power Supply 550m Ah lithium battery
Display Colour TFT LCD (320×240)
Weight 60 grams
Dimensions 100×56.5×10.7mm
