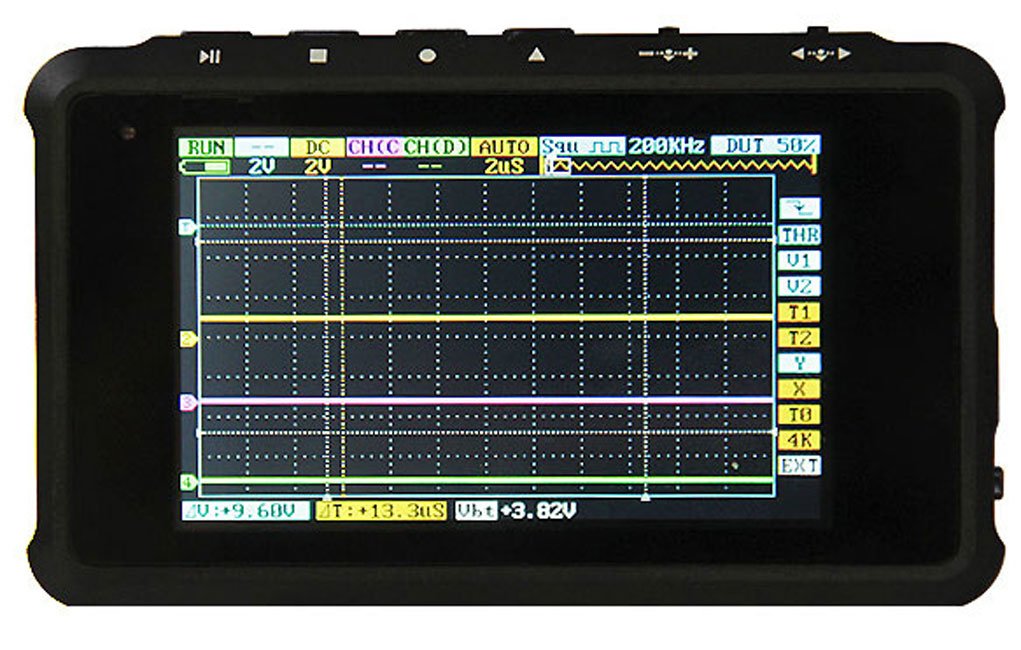

8Mhz Touch Screen Pocket Oscilloscope


8Mhz Touch Screen Pocket Oscilloscope

Key Features

  • 8Mhz Bandwidth Range
  • Touch Screen
  • 4 Channels
  • Small compact design
  • Signal Generator
  • Waveform Storage
Category: .

Product Description

The small compact pocket touch screen 8Mhz 4 channel oscilloscope is a practical instrument for basic electronics ranging from all fields such as education, laboratory testing to electrical engineering

Range 8Mhz
Sampling Rate 1kSa/s-72MSa/s

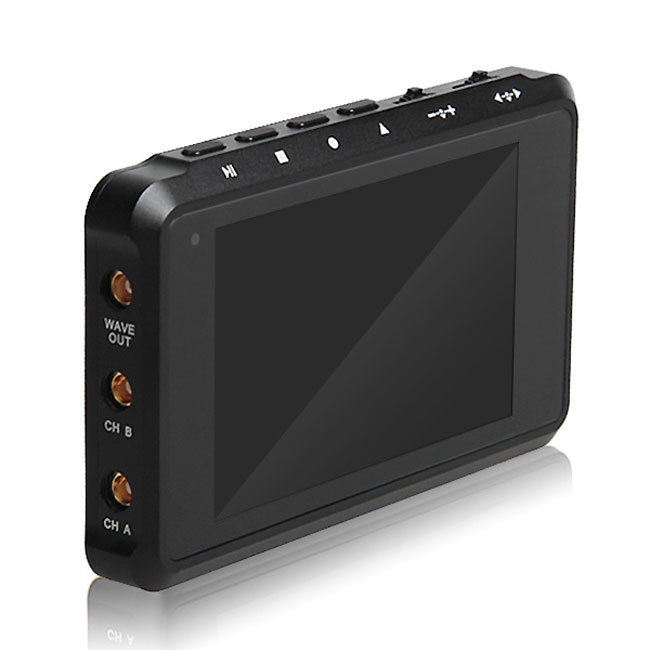

Analog Channel (2) [CH_A] [CH_B]

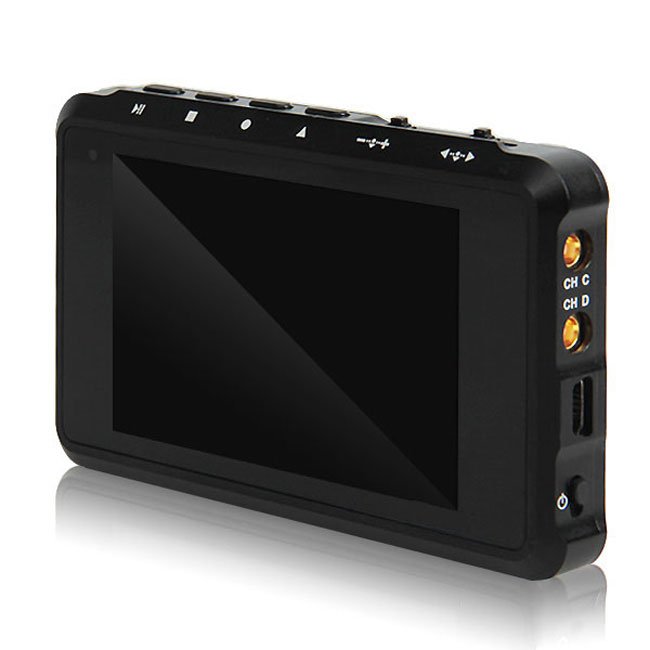

Digital Channel (2) [CH_C] [CH_D]
Vertical Scale 20m V-10V/div
Vertical Solution 8 bit
Max Input Voltage 80Vpp
Storage 4K per channel
Software Trigger Mode Edge, Pulse, Level
Hardware Trigger Mode Edge
Input Coupling Mode AC/DC
Trigger Source CH1/CH2/EXT
Test Signal Generator 10Hz to 1Mhz
Storage 2MB
Auto Measure Vmax, Vmin, Vpp, Vavr, Vrms, Freq, Period, Pulse, Duty
Cursor Measurement Level, Voltage
Display Mode CH1, CH2, EXT, CH1+CH2, CH1-CH2, CH1*CH2
Power Supply Lipo battery
Display Colour TFT LCD (320×240)
Dimensions 98x60x14.5mm
