Analogue Electronics Lab


Analogue Electronics Lab

Key Features

  • Functional blocks indicated on board mimic
  • On board DC and AC power supply
  • On board Function and Modulation Generator
  • On board Continuity Tester.
  • On board Toggle switches and Potentiometers
  • Solderless Breadboard
  • 22 Ready to use circuit boards designed experiments for breadboard


View Datasheet (PDF)


Category: .

Product Description

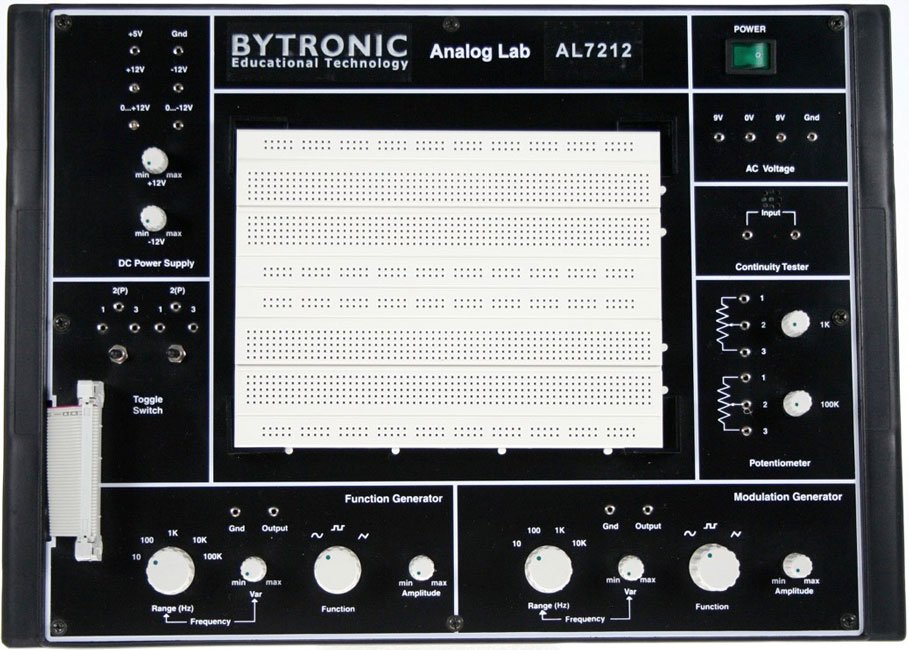

The AL7212 is designed for experimentation with analogue circuits in the laboratory. The AL7212 is a self-contained trainer which includes a DC regulated and AC power supplies, function generator, modulation generator, continuity tester, potentiometers and toggle switches. The unit is supplied with a breadboard to help students experiment with test circuity using various components without having to solder. A number of ready to use experiment circuit boards are provided.


  • Silicon, Zener, LED Diode Characteristics
  • Common Base NPN and PNP Transistor Characteristics
  • Common Emitter NPN and PNP Transistor Characteristics
  • Common Collector NPN and PNP Transistor Characteristics
  • N-Channel FET Characteristics
  • Common Emitter Amplifier
  • Common Collector Amplifier
  • Common Base Amplifier
  • Zener Voltage Regulator
  • Transistor Series Voltage Regulator
  • Transistor Shunt Voltage Regulator
  • Low Pass – High Pass Active Filters
  • Active Band Pass Filter
  • Phase Shift Oscillator
  • Wien Bridge Oscillator
  • Colpitt Oscillator
  • Kirchoff’s Laws (KCL and KVL)
  • Thévenin’s Theorem, Maximum Power Transfer Theorem
  • Reciprocity Theorem, Superposition Theorem
