Temperature Control

PCT-M4 PID Software

Temperature Control

Key Features

  • Control and measurement of temperature
  • PID control PC SCADA type software with control and data monitoring
  • Complete self-contained unit
  • Connection to PC through USB
  • Temperature used for the process
  • Three PRT sensors in different positions
  • Thermoelectric technology 0 to 100°C
  • Manually controlled fan for disturbance


View Datasheet (PDF)


Category: .

Product Description

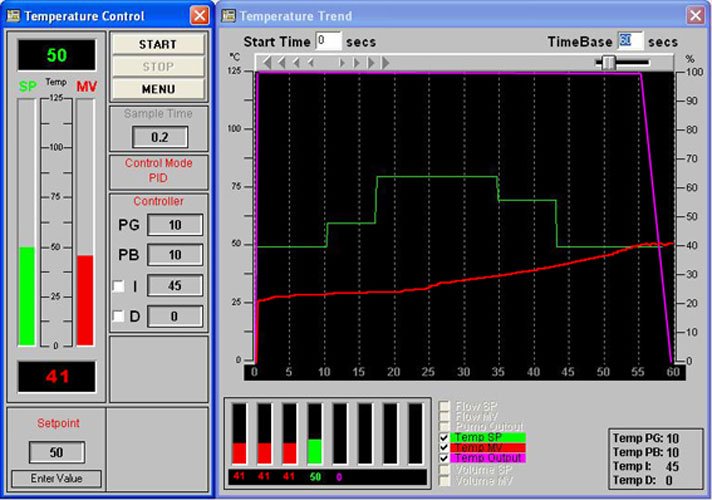

The PCT-M4 Temperature control trainer system enables the study of the principles in temperature control and monitoring in a system. The system is self-contained and only requires connection to a PC through a USB. The control module is contained on the unit and has a mimic of the systems and LED indication. The PCT-M4 can be controlled through the graphical based software supplied with the unit providing PID control.

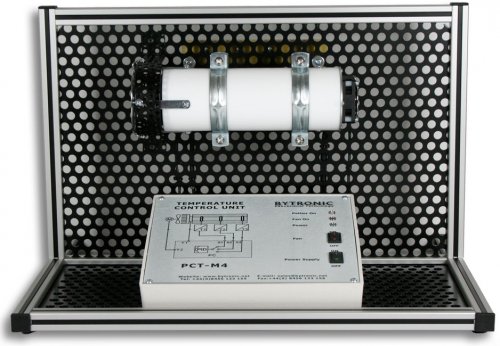

The system comprises of a rod that is heated using a thermoelectric element mounted in an enclosed tube, three PRT sensors are fitted along the rod to measure the temperature and a fan is fitted to the end of the tube to provide a disturbance. The tube is made from PTFE and guards are fitted to the fan and the heat sink to provide a safe working environment.
