200KHz 1 CH Pocket Oscilloscope

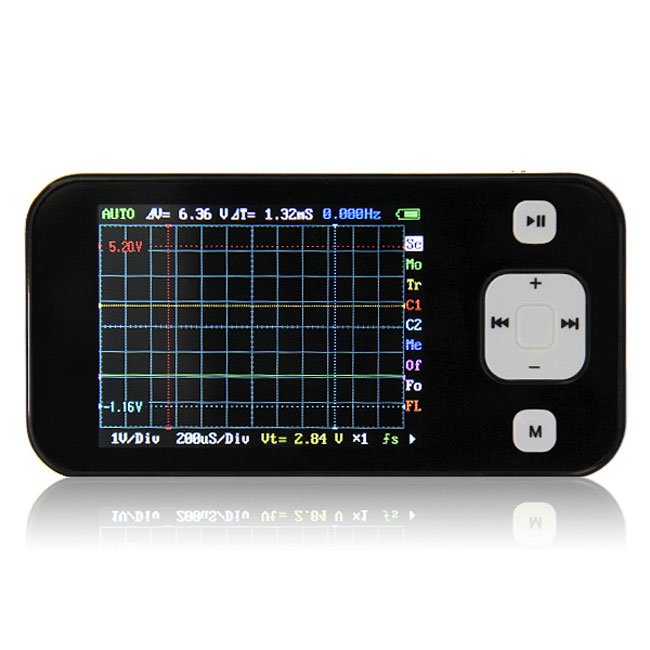

PO200k

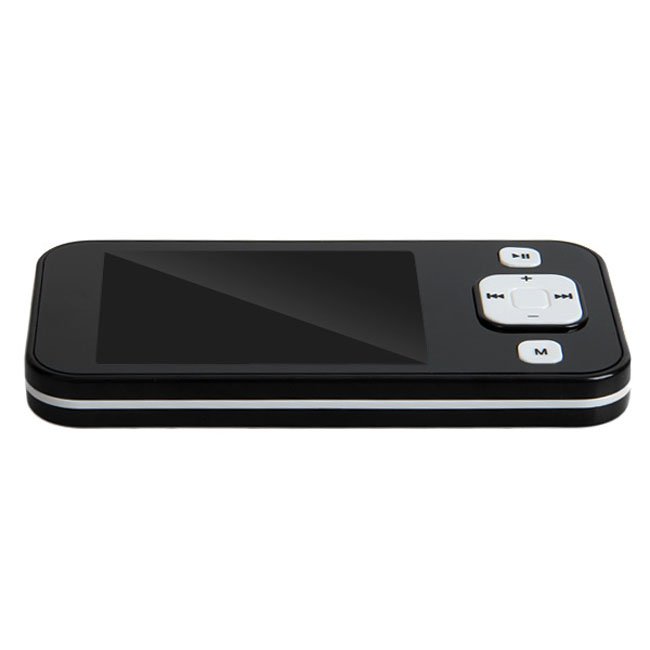

PO200k-Front

200KHz 1 CH Pocket Oscilloscope

Key Features

• 200kHz Bandwidth
• 1Msps Sampling rate
• Small and compact
• Trigger level adjustable with indicator
• Rising/falling edge trigger
• Trigger sensitivity adjustable with indicator
• Hold/run feature

Category: .

Product Description

The small compact pocket 200kHz 1 channel oscilloscope is a practical and portable with a built in battery for up to 2 hours operation.

Specification
Range 200kHz
Sampling Rate 1Msps 12 Bit
Storage Depth 4096
Transverse Sensitivity 1uS/Div~10S/Div (1~2~5 Stepping)
Vertical Sensitivity 10m v/Div~10V/Div (x1 Probe); 0.5V/Div~10V/Div (x10 Probe)
Input Resistance >500KΩ
Max Input Voltage 80Vpp
Trigger Mode Auto, Normal, Single, None, Scan
Coupling Mode DC
Inbuilt Signal Tester 10Hz~1MHz (1-2-5 Stepping)
Auto Measurement Frequency, cycle, duty, Vpp, Vram, Vavg, DC voltage, vertical precise measurement cursor, horizontal precise measurement cursor, rising/falling edge trigger, triggering cursor, triggering sensitivity cursor, hold/run
Waveform Storage SD Card
Recharging Method Recharge through USB
Display 2.8” Colour TFT LCD (320×240)
Weight 60 grams
Dimensions 105x53x8mm
