Advanced Fibre Optic

Key Features

  • Full duplex analogue and digital transmitter – receiver
  • 660nm and 950nm channels with transmitter and receiver
  • AM-FM-PWM modulation and demodulation
  • On board function generator
  • Crystal controlled clock

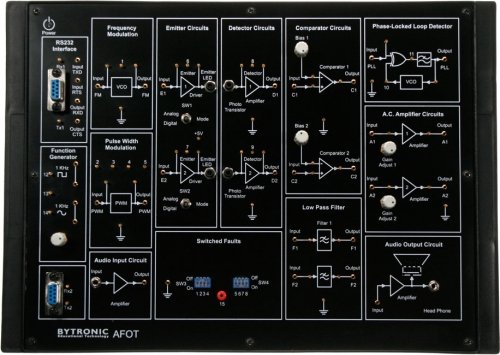

  • Functional blocks indicated via on-board mimic
  • Input-output and test points provided on board
  • On board voice link
  • Numerical aperture measurement jig and mandrel for bending loss included
  • Switched faults on transmitter and receiver



View Datasheet (PDF)



Category: .

Product Description

The Bytronic AFOT Fibre Optic Communication trainer provides a full duplex method of transmitting information from one place to another by sending pulses of light through an optical fibre, the light forms an electromagnetic wave that is modulated to carry information. The advanced fibre optics communication trainer is designed to learn the communication techniques in Fibre Optics.

The trainer demonstrates properties of Fibre Optics Transmitter and Receiver, characteristics of Fibre Optic cable, different types of Modulation/Demodulation techniques via fibre link. It can also be used to demonstrate various digital communication techniques.

Experiments:

  • Fibre optic analogue link
  • Fibre optic digital link
  • Intensity modulation technique using an analogue input signal
  • Intensity modulation technique using a digital input signal
  • AM system using analogue and digital inputs
  • FM and PWM modulation systems
  • Propagation loss in optical fibre
  • Bending loss in optical fibre
  • Measurement of numerical aperture
  • Characteristics of E-O converter (LED)
  • Characteristics of F.O communication link
  • Measurement of power using optical power meter
  • Characteristics of E-O converter using optical power meter
  • Propagation loss using optical power meter
  • Setting of fibre optic voice link using intensity modulation, AM-FM and PWM
  • Study of switched fault in AM-FM and PWM systems
  • Full duplex computer communication using RS232 ports and software
  • BIT rate measurement
  • Determining the density of the fibre optic link
