Telephone Trainer System

TTS

Telephone Trainer System

Key Features

  • Functional blocks
  • LED visualizations
  • Switched faults
  • On board telephone line connection facility
  • High pass and low pass filters to study DTMF frequencies
  • On/Off Hook Switch, Dialler, Ringer, Speech Processing Section
  • DTMF (Tone) and Pulse Dialling
  • Test Points are provided to observe isolated Dual Frequency output during DTMF Dialing



View Datasheet (PDF)



Category: .

Product Description

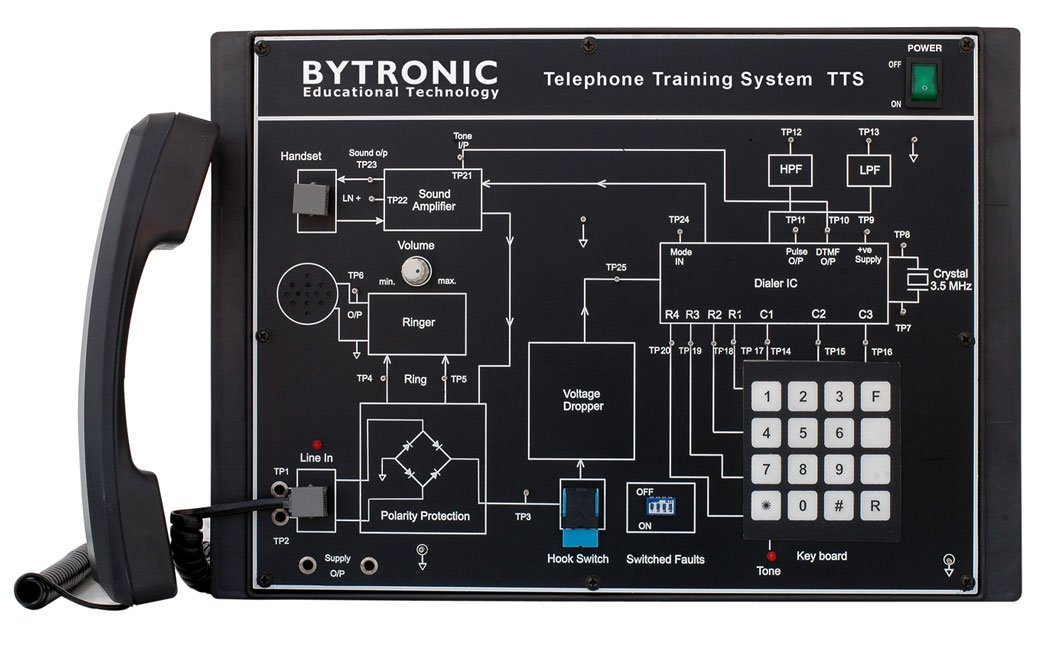

The Telephone Training System (TTS) helps students to understand the basic concept and functional working of a Telephone system. An onboard mimic is provided that details the various blocks of a telephone and all components. Test points and LED’s are provided to allow students to observe various signals which helps them to understand the working of each block
