Frequency Division Multiplexer/Demultiplexer

Frequency Division Multiplexer/Demultiplexer

Key Features

  • Two variable modulating (sinusoidal) input channels with provision of voice inputs
  • Two DSBSC modulators for frequency band translation of two test signals
  • Two Carrier Generators
  • Two Sets of Audio input Amplifier
  • One adder/transmission Amplifier
  • Two Demodulators
  • Two low pass filters for smooth output



View Datasheet (PDF)



Category: .

Product Description

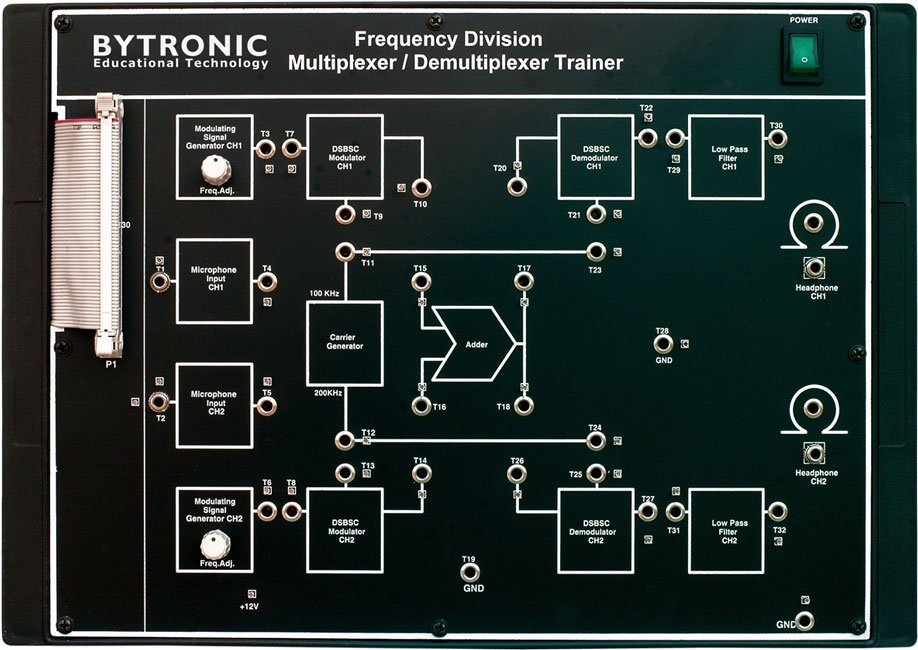

The 7511 Frequency Division Multiplexer/Demultiplexer trainer is part of an analogue communication range which provides all the necessary inputs, test points and connections for experimentation. The 7511 demonstrates FDM techniques by transmitting a single communication line through two different modulated inputs.
